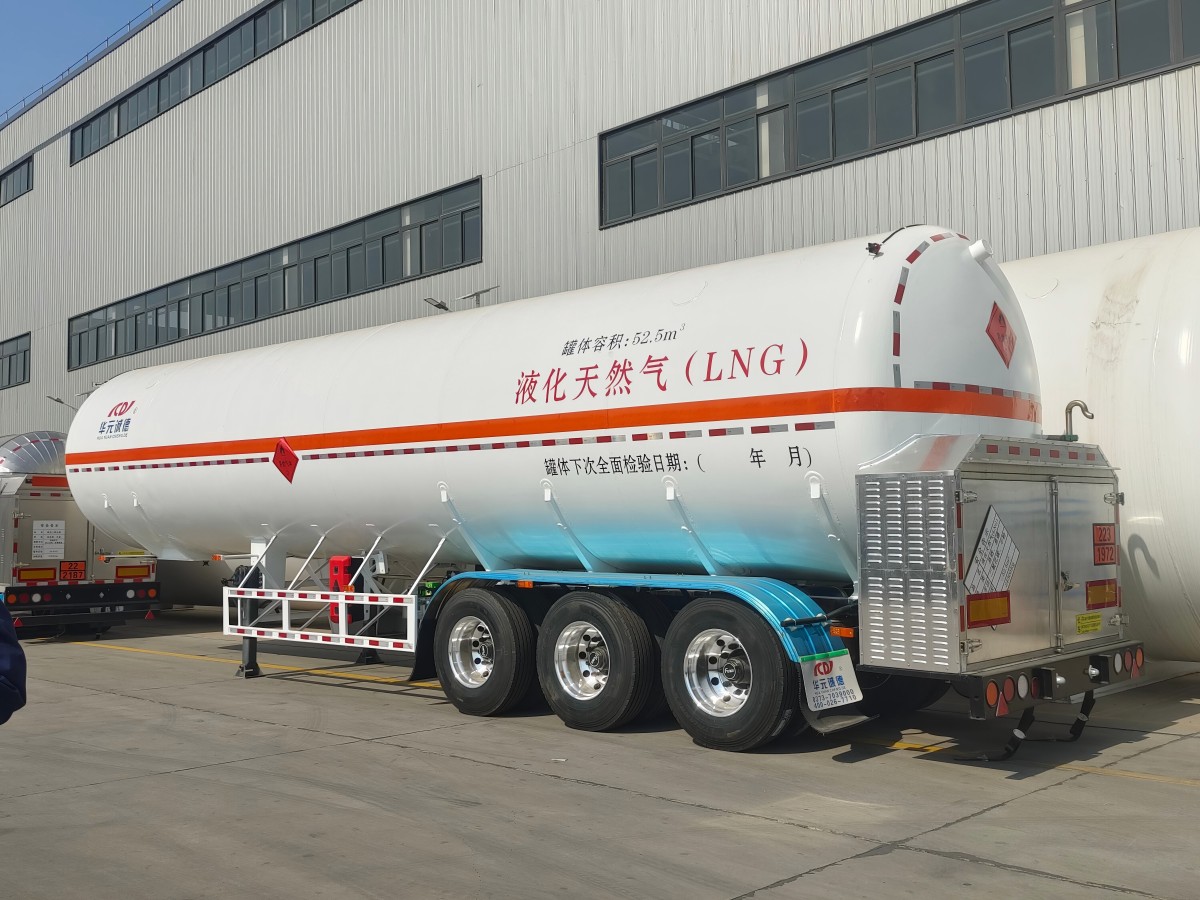

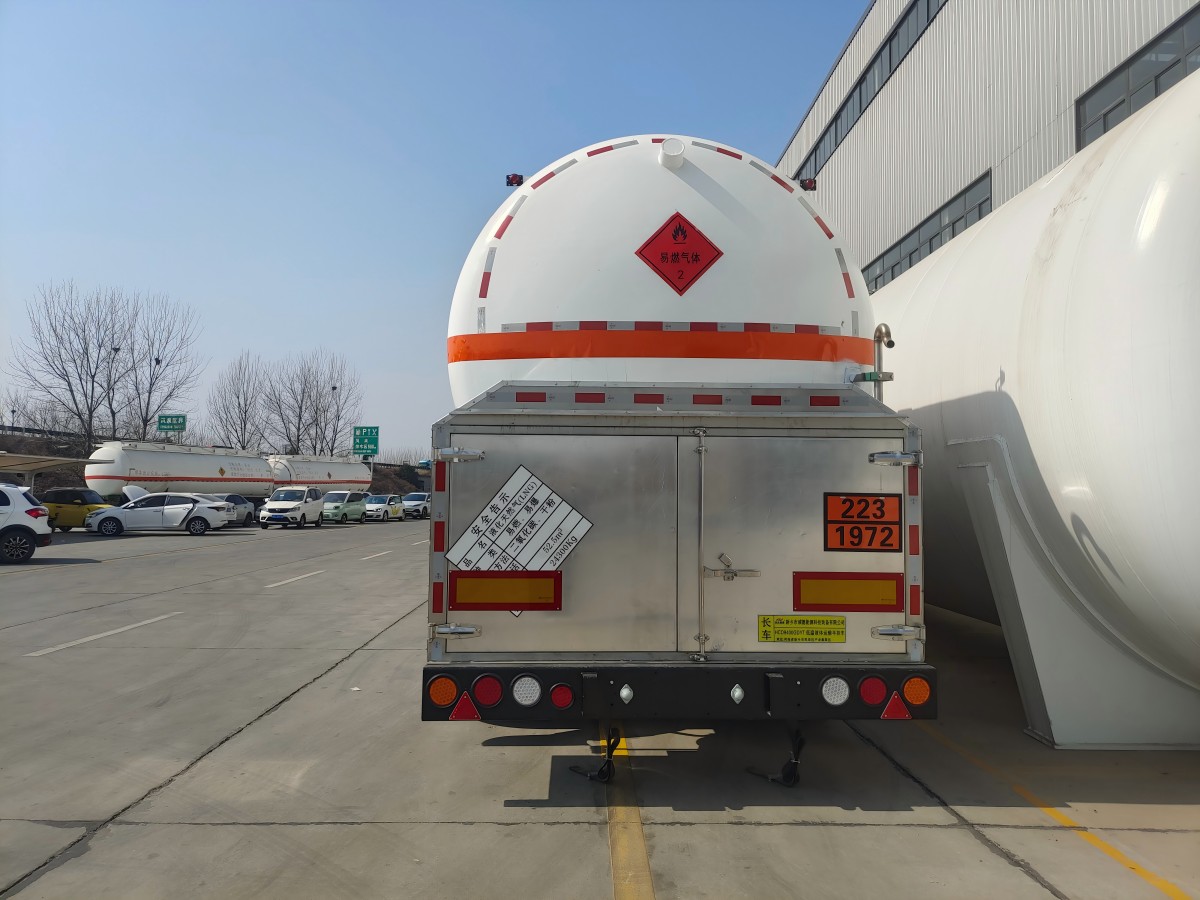

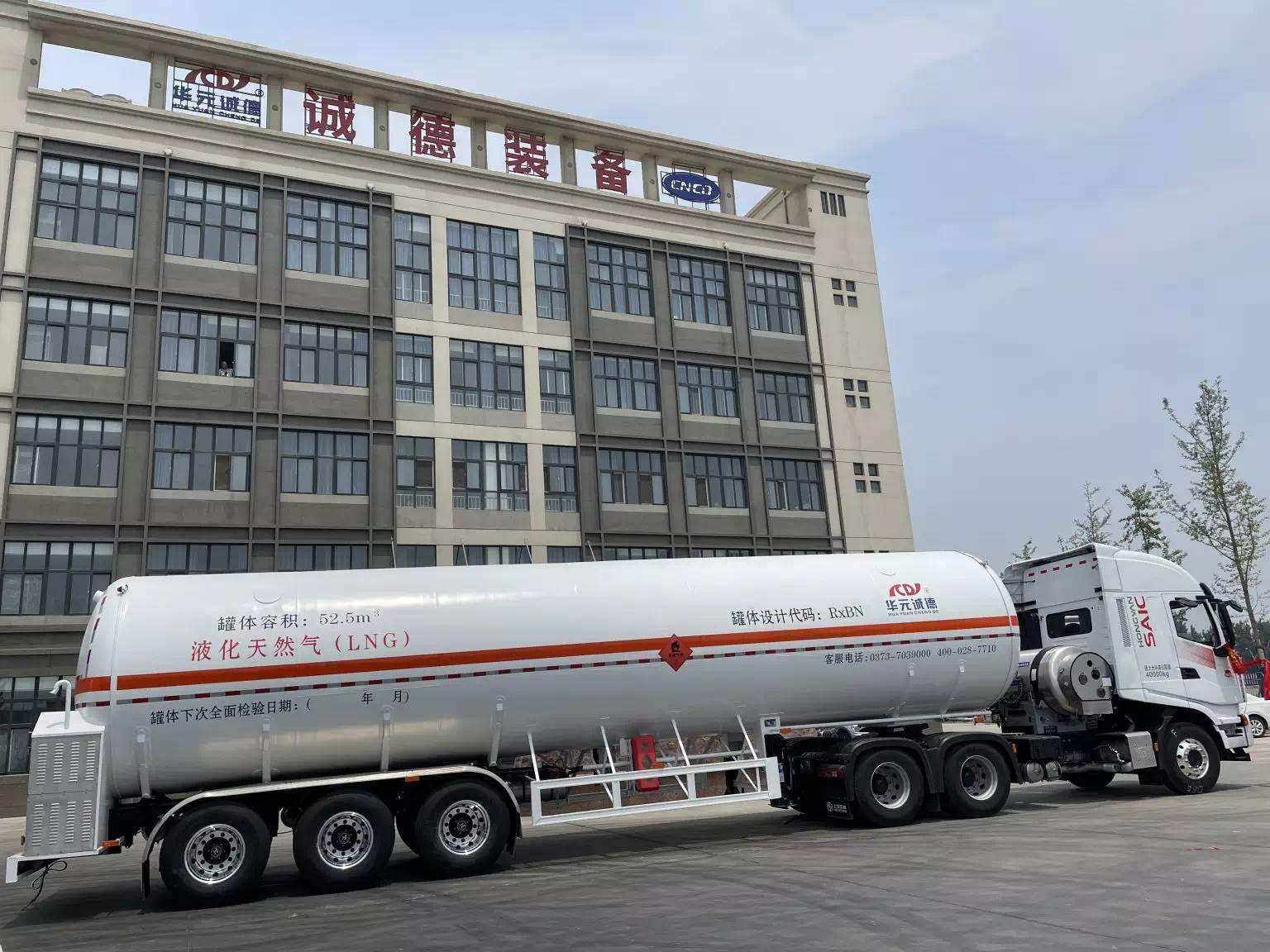

Cryogenic LNG semi-trailer

A cryogenic LNG semi-trailer is a specialized type of trailer designed for the transportation of liquefied natural gas (LNG) at extremely low temperatures. LNG is natural gas that has been cooled to approximately -162°C (-260°F), at which point it becomes a liquid, allowing for more efficient storage and transportation due to its reduced volume.

Key Features :
1.Cryogenic Tank:

• The core component is a highly insulated, vacuum-sealed cryogenic tank designed to maintain the LNG at its ultra-low temperature during transport.
• The tank is typically made of stainless steel or other materials capable of withstanding extreme temperatures and pressure.

2.Insulation:

• The tank is insulated with materials such as perlite or vacuum insulation to minimize heat transfer and prevent boil-off (evaporation of LNG).
• Multi-layer insulation (MLI) is often used to enhance thermal efficiency.

3.Pressure Management:

• The trailer is equipped with pressure relief valves and vents to safely manage any pressure buildup caused by the natural boil-off of LNG.
• Some systems may include re-liquefaction or recovery systems to handle boil-off gas.

4.Safety Systems:

• Advanced safety features include emergency shutdown systems, fire protection, and collision protection.
• The trailer is designed to meet stringent safety standards, such as those set by the DOT (Department of Transportation) or ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road).

5.Capacity:

• Cryogenic LNG semi-trailers typically have a capacity ranging from 10,000 to 18,000 gallons (38,000 to 68,000 liters), depending on the design and regulations.

6.Chassis and Axles:

• The trailer is mounted on a robust chassis designed to handle the weight of the cryogenic tank and its contents.
• It may have multiple axles to distribute the load and comply with road weight limits.

7.Boil-Off Gas Management:

• During transportation, a small amount of LNG naturally evaporates (boil-off gas). Modern trailers may include systems to capture and reuse this gas or safely vent it.

8.Regulatory Compliance:

• These trailers must comply with international and national regulations for the transport of cryogenic and hazardous materials, such as ASME Boiler and Pressure Vessel Code, DOT/PHMSA standards, and ISO specifications.

Applications:

• Transportation of LNG: Moving LNG from liquefaction plants to distribution centers or end-users.
• Bunkering: Delivering LNG to ships for use as marine fuel.
• Remote Power Generation: Supplying LNG to remote locations for power generation or industrial use.

Peak Shaving: Transporting LNG to storage facilities for use during periods of high demand.

Advantages:

• Efficient Transport: LNG occupies about 1/600th the volume of natural gas in its gaseous state, making it cost-effective to transport.
• Environmental Benefits: LNG is a cleaner-burning fuel compared to diesel or coal, reducing greenhouse gas emissions.
• Versatility: Suitable for both short- and long-distance transportation.

Challenges:

• High Initial Cost: Cryogenic trailers are expensive to manufacture due to the specialized materials and technology required.
• Maintenance: Regular maintenance is needed to ensure the integrity of the insulation and pressure systems.
• Safety Risks: Handling cryogenic liquids requires strict safety protocols to prevent accidents.

Cryogenic LNG semi-trailers play a critical role in the LNG supply chain, enabling the safe and efficient transport of natural gas in its liquid form.
