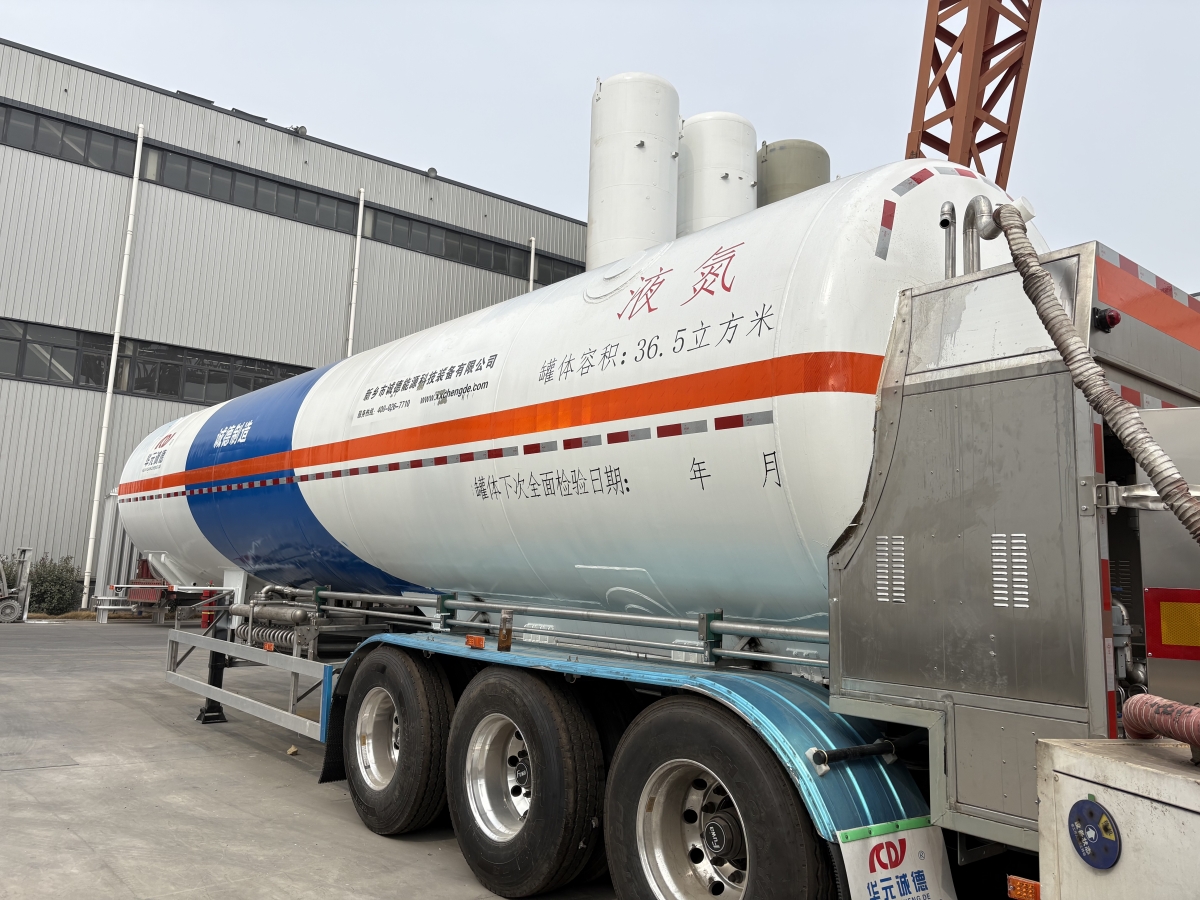

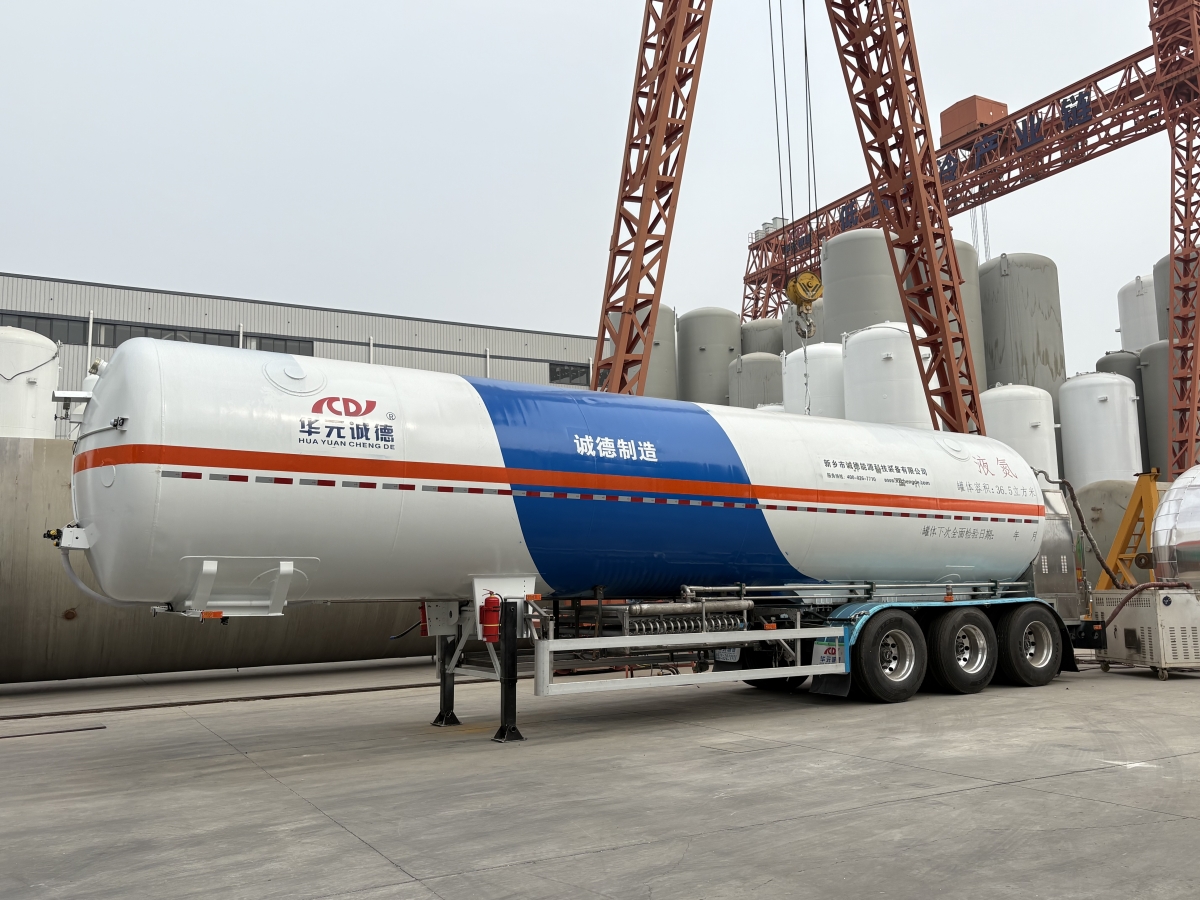

Cryogenic liquid nitrogen semi-trailer

Cryogenic liquid nitrogen semi-trailer

A cryogenic liquid nitrogen semi-trailer is a specialized type of tanker truck designed to transport liquid nitrogen at extremely low temperatures. Liquid nitrogen is a cryogenic fluid, meaning it exists in a liquid state at temperatures below -196°C (-321°F). These semi-trailers are engineered to safely store and transport large quantities of liquid nitrogen while maintaining its cryogenic state.

Key Features of a Cryogenic Liquid Nitrogen Semi-Trailer:

1. Insulated Tank:
   • The tank is made of high-quality stainless steel or aluminum to withstand extreme temperatures.
   • It is vacuum-insulated or uses multi-layer insulation (MLI) to minimize heat transfer and prevent boil-off of the liquid nitrogen.
2. Pressure Vessel Design:
   • The tank is designed as a pressure vessel to safely contain the liquid nitrogen and any gaseous nitrogen that forms due to evaporation.
   • It typically operates at low pressures (e.g., 15-25 psi) to maintain the liquid state.
3. Safety Systems:
   • Pressure relief valves and venting systems to prevent over-pressurization.
   • Rupture discs as a fail-safe mechanism.
   • Emergency shut-off valves and safety interlocks.
4. Cryogenic Pumps and Valves:
   • Equipped with cryogenic-compatible pumps and valves for loading and unloading the liquid nitrogen.
   • These components are designed to operate efficiently at cryogenic temperatures.
5. Boil-Off Management:
   • The trailer is designed to minimize boil-off losses during transport.
   • Any evaporated nitrogen can be vented safely or recaptured, depending on the system design.
6. Transportation Compliance:
   • The semi-trailer must comply with transportation regulations, such as DOT (Department of Transportation) or ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road) standards.
   • It is labeled with appropriate hazard placards for cryogenic liquids.
7. Capacity:
   • These trailers typically have large capacities, ranging from 10,000 to 20,000 gallons (38,000 to 76,000 liters), depending on the design and regulations.
8. Durability and Mobility:
   • Built to withstand long-distance travel and harsh road conditions.
   • Equipped with advanced suspension systems to handle the weight of the cryogenic liquid.

Applications:

• Industrial Use: Transporting liquid nitrogen for use in manufacturing, metal processing, and chemical industries.
• Medical and Pharmaceutical: Supplying liquid nitrogen for cryopreservation, cryosurgery, and other medical applications.
• Food and Beverage: Used in food freezing and packaging processes.
• Scientific Research: Transporting liquid nitrogen for laboratory and research purposes.

Safety Considerations:

• Liquid nitrogen is extremely cold and can cause severe frostbite or cryogenic burns upon contact with skin.
• It can displace oxygen in confined spaces, posing an asphyxiation risk.
• Proper training and handling procedures are essential for operators.

Cryogenic liquid nitrogen semi-trailers are critical for industries that rely on the safe and efficient transport of liquid nitrogen. Their design ensures the integrity of the cargo while prioritizing safety and regulatory compliance.
