LNG Marine Fuel Tank

2024 China Factory Cncd High Efficiency Lng Marine Fuel Tank

Product Introduction： The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS “Marine Application Of Natural Gas Fuel specification”, and provides Marine LNG system integration equipment and s……

Tel: +86-373-2677103

Detailed introduction

Product Introduction：

The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS “Marine Application Of Natural Gas Fuel specification”, and provides Marine LNG system integration equipment and skid-mounted products.The company can customize special types and special specifications of LNG powered Marine storage tanks and systems according to customer requirements.

Product Parameters：

Product Name	Volume	Static evaporation rate (%/d)	Design pressure (MPa)	External dimensions (mm)	Net weight (kg)	Filling quality (kg)	Center distance of saddle (mm)

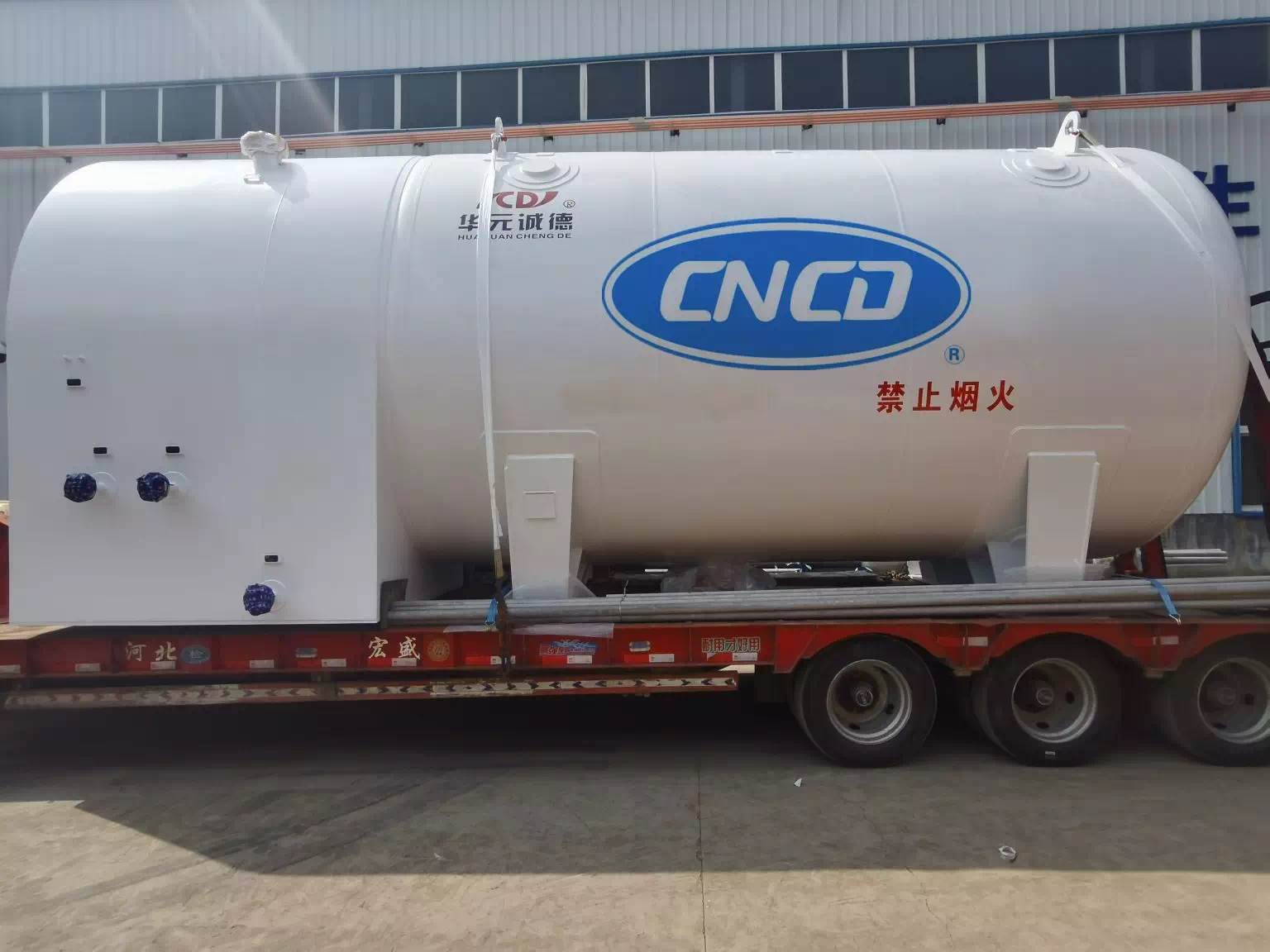

LNG powered marine fuel tanks (Single cold box and single gas supply)	3	0.6	1/1.2	4450×1510×2050	3450	1350	1650
	5	0.45	1/1.2	4650×1810×2330	4900	2250	1650
	10	0.35	1/1.2	6510×1912×2530	5500	4500	3430
	15	0.25	1/1.2	7726×2116×2370	8050	6750	4100
	20	0.23	1/1.2	8227×2316×2556	10500	9000	4400

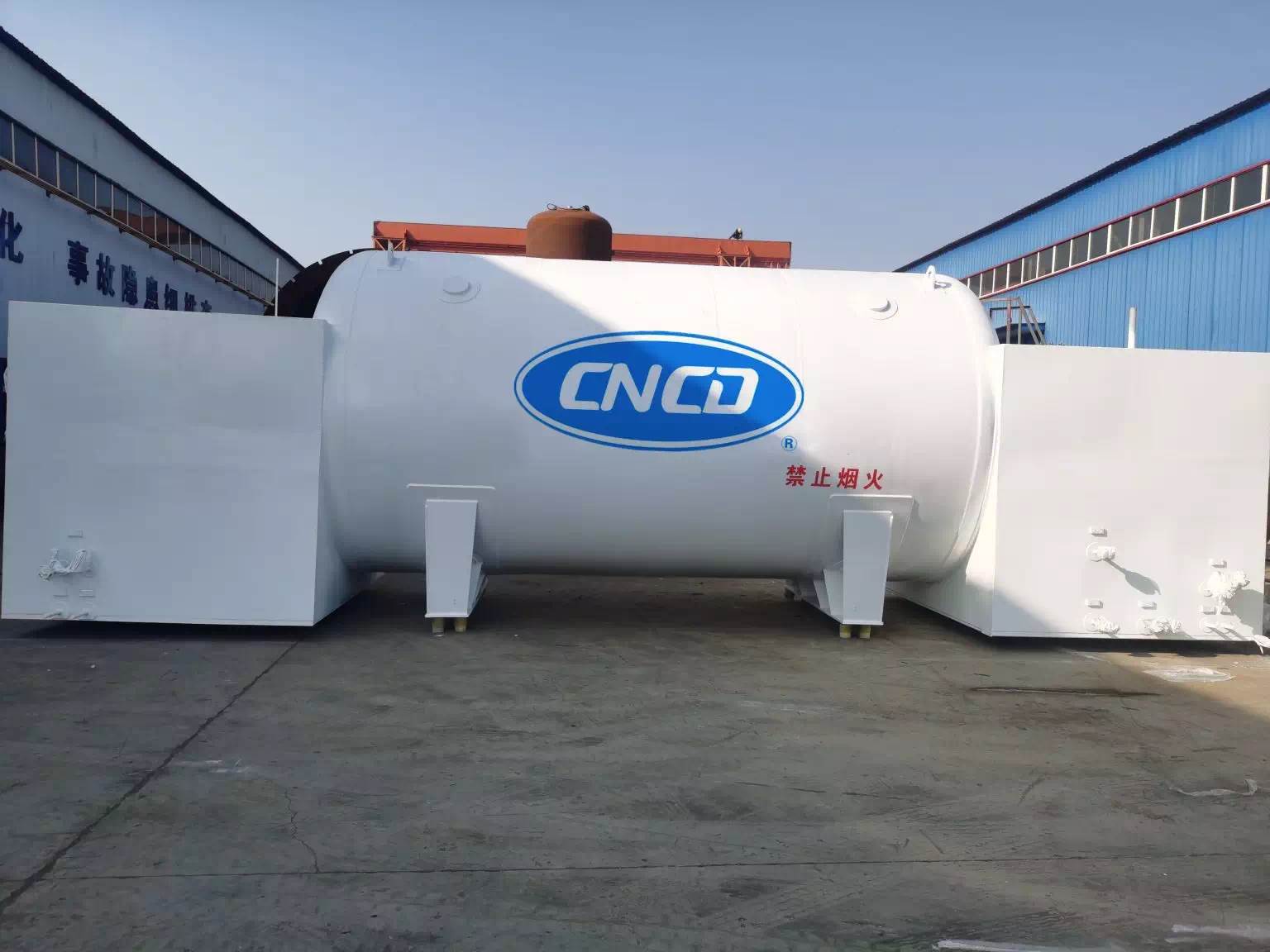

LNG powered marine fuel tanks (Dual cold box and dual air supply)	3	0.6	1/1.2	5000×1510×2050	3750	1350	1650
	5	0.45	1/1.2	5565×1810×2330	5500	2250	1650
	10	0.35	1/1.2	7500×1912×2530	5950	4500	3430
	15	0.25	1/1.2	8750×2116×2370	8950	6750	4100
	20	0.23	1/1.2	9210×2316×2556	11500	9000	4400

Product features:

(1) The storage tank adopts a top out liquid structure, with no risk of low-temperature liquid leakage;

(2) The shell is made of carbon steel material, which saves material costs;

(3) By using this top discharge liquid storage tank, there is no need to set up a pump tank in the system, and there is no pump tank return pipeline, making the system more concise and safe;

(4) This top out liquid storage tank can eliminate the need for cold boxes and cofferdams in the system, reduce the space occupied by the system, and also avoid cracking of the cement cofferdam due to deck deformation;

(5) The pump is placed inside the storage tank, without the need for pre cooling, and the pump operates stably, saving filling time;

(6) The top of the storage tank is equipped with a pump inlet and outlet well, and the pump can be maintained in the future;

(7) This top out liquid storage tank can reduce the overall construction cost of the barge LNG refueling system by about 20%, and reduce the system’s BOG volume by 40%;
