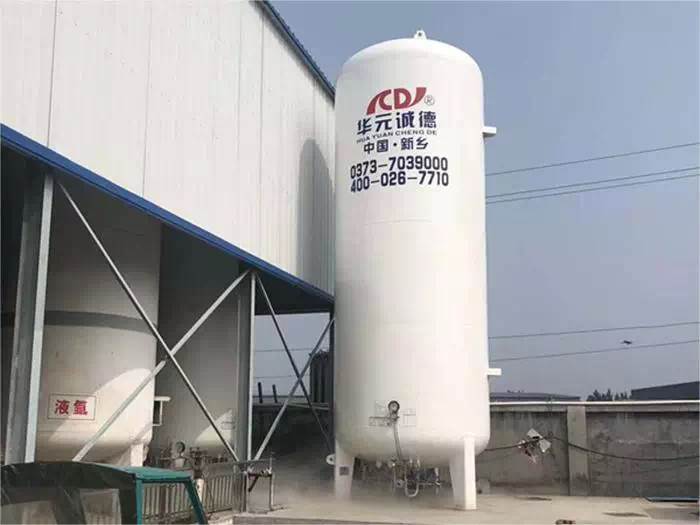

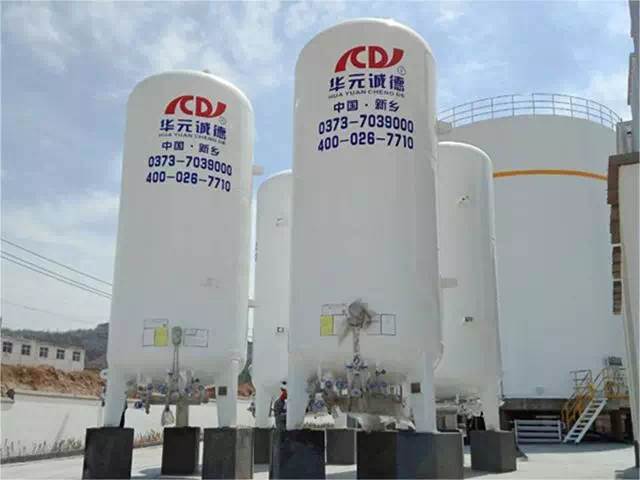

Cryogenic Lng Storage Gas Tank For Industry Use

Product Introduction：

Cryogenic liquid storage tank is for double wall,vertical (horizontal) structure, adopt vacuum powder insulation, with the advantage of compact structure, low daily evaporation rate small footprint centralized control safe,reliable, easy operation and maintenance.

LNG tank is a professional product for storing liquefied natural gas which is widely used in energy,metallurgy,chemical,food, aquaculture and other fields.

Product Parameters：

1.Loading medium: LNG

2.Total Volume:30m³

Effective Volume:10.0 m3

3.Design pressure: 0.84 MPa

Working pressure: 0.8MPa

4.Overall dimension:Φ2600×10632mm

5.Outer cylinder design temperature : 60℃

Inner cylinder design temperature:-196℃

6.Shell material:Outer jacket: Q245-R;   Inner: S30408.

7.Insulation: Vacuum powder insulation.

8.Tare weight:  About 11540KG

9.Filling rate:0.95

10.Paint thickness:250μm

11.Relief Valve:  All valves are high grade Chinese valves.

12.static evaporation rate:

a.Liquid nitrogen static evaporation rate:under 0.650%/d

b. Liquid oxygen static evaporation rate:under 0.435%/d

c. Liquid argon static evaporation rate:under 0.460%/d

(ambient conditions: 100kPa and 30℃)

13.The vacuum before shipping :under 1.0Pa

Product packaging：

1.20ft &40ft container

2.Nude packing or Seaworthy packing

3.Customer’s Request
