Cryogenic liquid nitrogen tank

Cryogenic liquid nitrogen tank

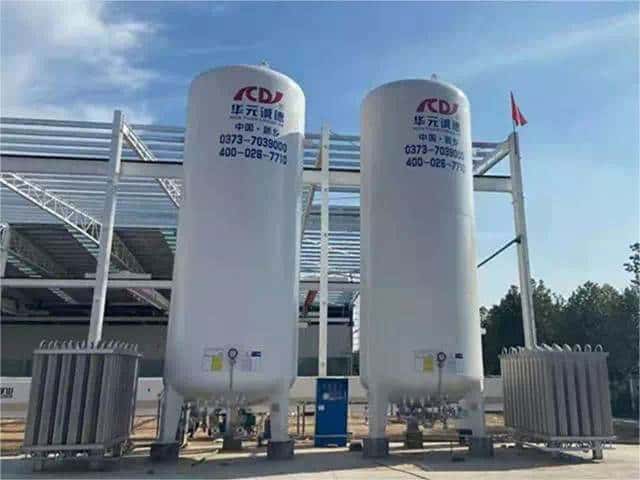

A cryogenic liquid nitrogen tank is a specialized container designed to store and transport liquid nitrogen at extremely low temperatures. Liquid nitrogen has a boiling point of approximately -196°C (-321°F) at atmospheric pressure, so these tanks are engineered to maintain such cryogenic temperatures while ensuring safety and efficiency.

Key Features :

1.Insulation:

Tanks are typically double-walled with a vacuum between the walls to minimize heat transfer.

The inner vessel is often made of stainless steel, while the outer shell is constructed from durable materials like carbon steel or aluminum.

Insulation materials such as perlite or multilayer superinsulation (MLI) are used to reduce heat ingress.

2.Pressure Management:

Liquid nitrogen tanks are designed to handle pressure buildup due to the evaporation of liquid nitrogen.

Pressure relief valves and venting systems are included to prevent over-pressurization.

3.Capacity:

Tanks come in various sizes, ranging from small portable dewars (a few liters) to large stationary tanks (thousands of liters).

4.Safety Features:

Pressure gauges, temperature monitors, and safety valves are standard.

Tanks are designed to withstand extreme conditions and prevent leaks or ruptures.

5.Applications:

Medical and Biological: Storage of biological samples, such as sperm, eggs, embryos, and tissues, in cryopreservation.

Industrial: Cooling in manufacturing processes, shrink-fitting, and cryogenic grinding.

Scientific Research: Use in laboratories for experiments requiring ultra-low temperatures.

Food Industry: Flash freezing and preservation of food products.

Handling and Safety Considerations:
Personal Protective Equipment (PPE): Gloves, face shields, and aprons are necessary to protect against frostbite and cold burns.

Ventilation: Ensure proper ventilation in storage areas to prevent the buildup of nitrogen gas, which can displace oxygen and cause asphyxiation.

Regular Maintenance: Inspect tanks for leaks, pressure issues, and insulation integrity.

Transportation: Secure tanks properly during transport to prevent tipping or damage.

Cryogenic liquid nitrogen tanks are essential tools in many industries, enabling the safe and efficient use of liquid nitrogen for a wide range of applications. Proper handling and maintenance are critical to ensure safety and longevity.
