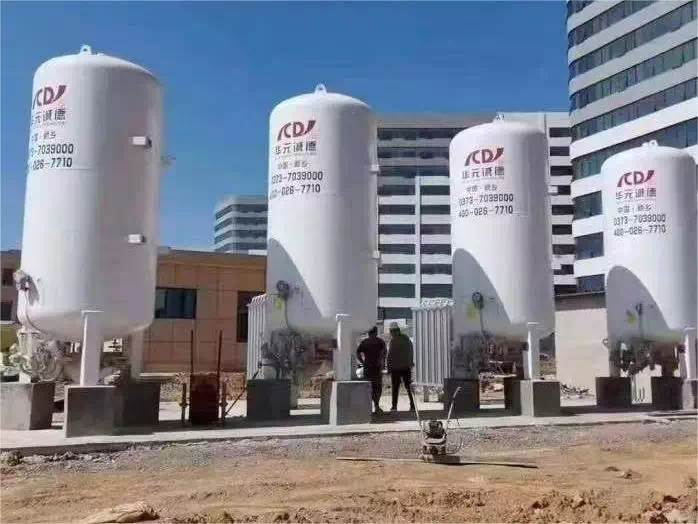

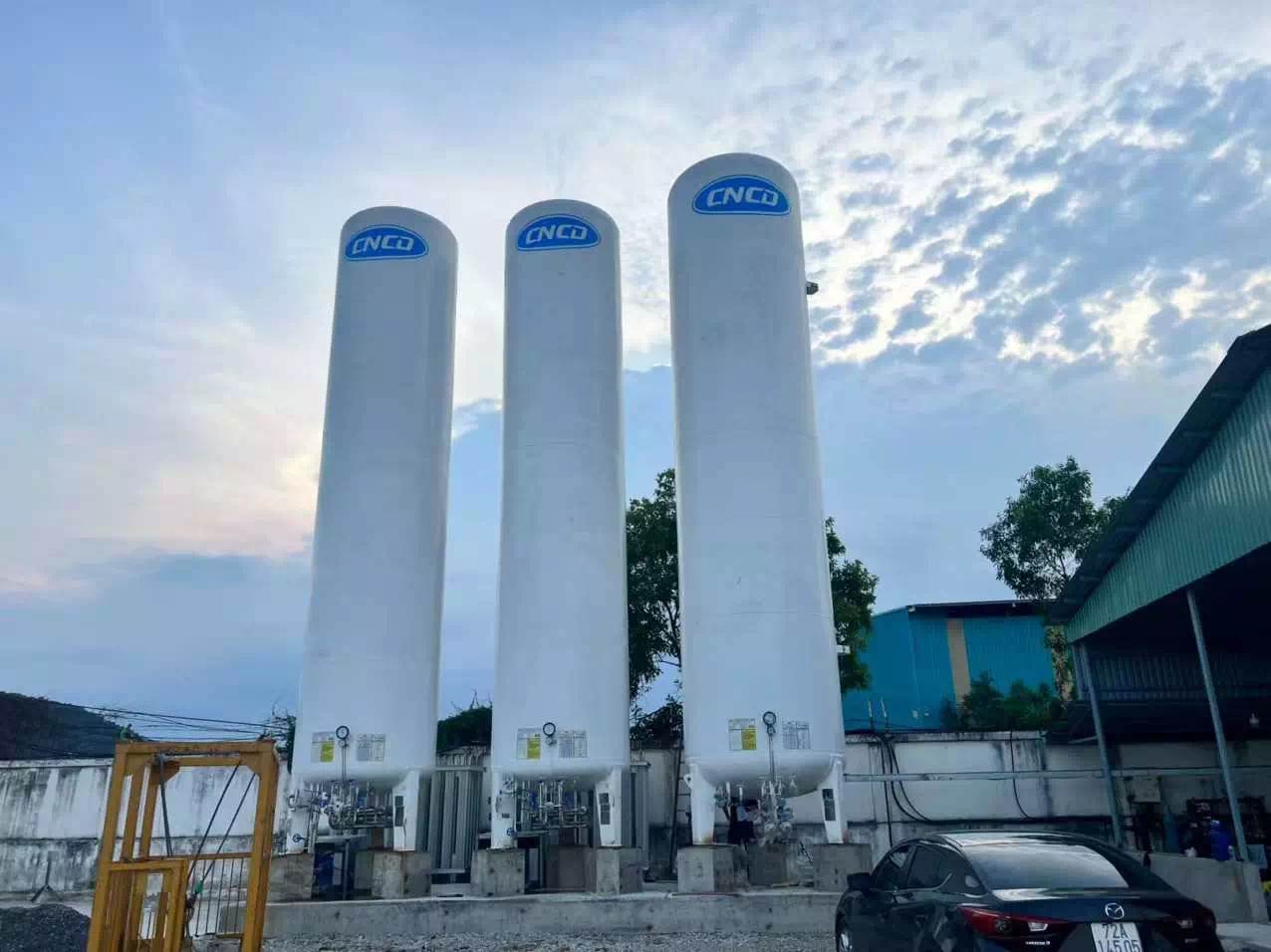

Cryogenic Liquid Argon Storage Tank

A cryogenic liquid argon storage tank is a specialized container designed to store argon in its liquid state at extremely low temperatures. Argon becomes liquid at temperatures below -185.9°C (-302.6°F) at atmospheric pressure. These tanks are essential in industries that require argon for various applications, such as welding, semiconductor manufacturing, and scientific research.

Key Features
Insulation:

Vacuum Insulation: Most cryogenic tanks use a double-walled design with a vacuum between the walls to minimize heat transfer.

Multi-layer Insulation (MLI): Additional layers of reflective materials may be used to further reduce heat ingress.

Materials:

Inner Vessel: Typically made of stainless steel or other materials that can withstand extremely low temperatures.

Outer Vessel: Usually made of carbon steel or stainless steel to provide structural support and additional insulation.

Pressure Management:

Pressure Relief Valves: To prevent over-pressurization, these valves release excess pressure.

Pressure Build-up Coils: These coils help maintain the pressure inside the tank by vaporizing a small amount of liquid argon.

Monitoring Systems:

Level Indicators: To monitor the amount of liquid argon in the tank.

Temperature Sensors: To ensure the argon remains at the required cryogenic temperature.

Pressure Gauges: To monitor and control the internal pressure.

Safety Features:

Emergency Shut-off Valves: To quickly isolate the tank in case of a leak or other emergency.

Rupture Discs: Provide an additional safety measure by bursting at a predetermined pressure to prevent tank failure.

Vaporization Systems:

Ambient Vaporizers: Convert liquid argon to gas using ambient heat.

Forced Vaporizers: Use external heat sources to vaporize the liquid argon more quickly.

Applications:
Welding: Argon is used as a shielding gas in TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding.

Semiconductor Manufacturing: Argon is used in the production of semiconductors and other electronic components.

Scientific Research: Used in various research applications, including cryogenics and spectroscopy.

Medical: Argon is used in some medical lasers and surgical procedures.

Maintenance and Safety:
Regular Inspections: To ensure the integrity of the tank and its components.

Leak Detection: Regular checks for leaks to prevent argon loss and potential safety hazards.

Training: Personnel should be trained in the safe handling and operation of cryogenic systems.

Considerations:
Storage Capacity: Choose a tank size that meets your argon usage requirements.

Location: Ensure the tank is placed in a well-ventilated area, away from flammable materials.

Regulations: Compliance with local and international standards for cryogenic storage.

Cryogenic liquid argon storage tanks are critical for safely storing and handling argon in its liquid form, ensuring a reliable supply for various industrial and scientific applications.
