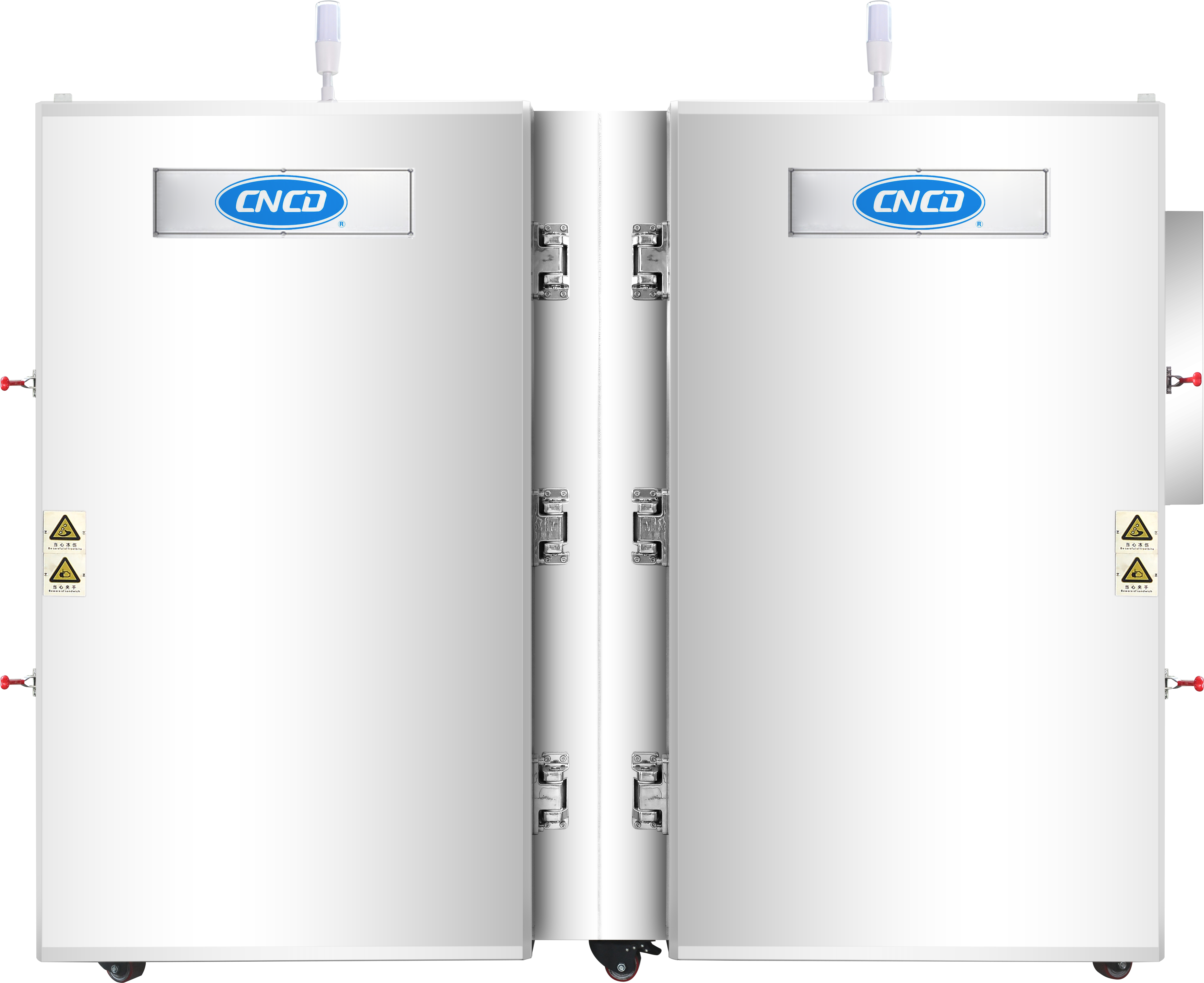

Liquid nitrogen blast freezer

A liquid nitrogen freezer is an ultra-low temperature storage system that uses liquid nitrogen (LN₂) to preserve biological samples, cells, tissues, and other sensitive materials at temperatures as low as -196°C (-321°F). These freezers are essential in research laboratories, biobanks, fertility clinics, and pharmaceutical industries for long-term cryopreservation.

Types of Liquid Nitrogen Freezers

1. Vapor-Phase LN₂ Freezers
   • Samples are stored in the cold nitrogen vapor above the liquid nitrogen.
   • Prevents cross-contamination (no direct contact with LN₂).
   • Safer for handling and reduces the risk of sample explosion (if improperly sealed).
2. Liquid-Phase LN₂ Freezers
   • Samples are fully submerged in liquid nitrogen.
   • Provides the lowest possible temperature (-196°C).
   • Higher risk of contamination if vials are not properly sealed.

Key Features

• Temperature Stability: Maintains a consistent ultra-low temperature.
• Large Storage Capacity: Can hold thousands of vials (e.g., 1,000 to 30,000+ samples).
• Automated Monitoring: Alarms for low LN₂ levels, temperature fluctuations, and lid openings.
• Durable Insulation: Minimizes nitrogen evaporation.
• Safety Mechanisms: Pressure relief valves, oxygen sensors (to prevent asphyxiation risks).

Applications

• Biobanking (stem cells, DNA, tissues)
• IVF & Reproductive Medicine (sperm, eggs, embryos)
• Pharmaceutical & Vaccine Storage
• Cryopreservation in Research

Advantages

1. Extremely low, stable temperatures (better than mechanical -80°C freezers).
2. Long-term preservation without electrical failure risks (if LN₂ is replenished).
3. No moving parts, reducing mechanical breakdowns.

Safety Considerations

• Use proper PPE (cryogenic gloves, face shield).
• Ensure adequate ventilation (LN₂ evaporation displaces oxygen).
• Store in well-sealed cryovials to prevent explosions.
