ISO Tank Container

High Quality Cryogenic Industrial 20Ft Iso Tank

Product Introduction： The container is used for carrying liquid goods such as wine,oil.liquid food and Single-layer liquid cargo such as chemicals,it is mainly composed of liquid tank and frame.The liquid tank adopts double layer structure, the inner wall is made of stainless steel or other rigi……

Tel: +86-373-2677103

Detailed introduction

Product Introduction：

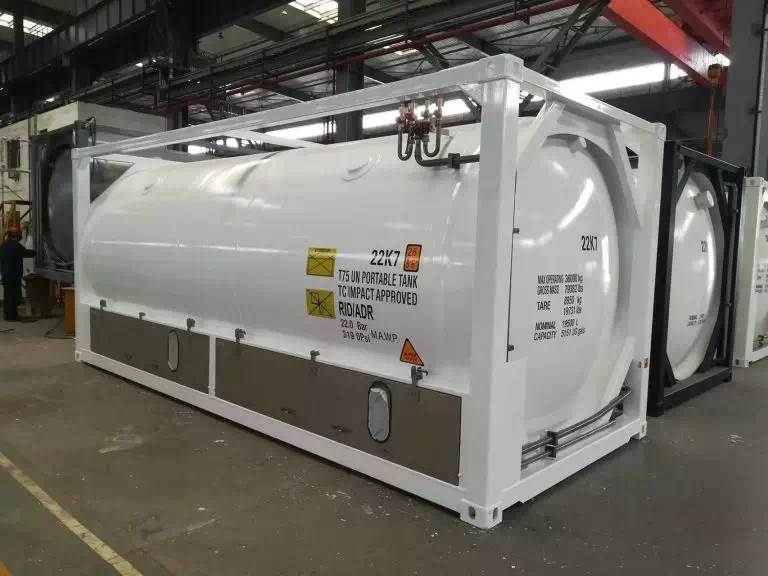

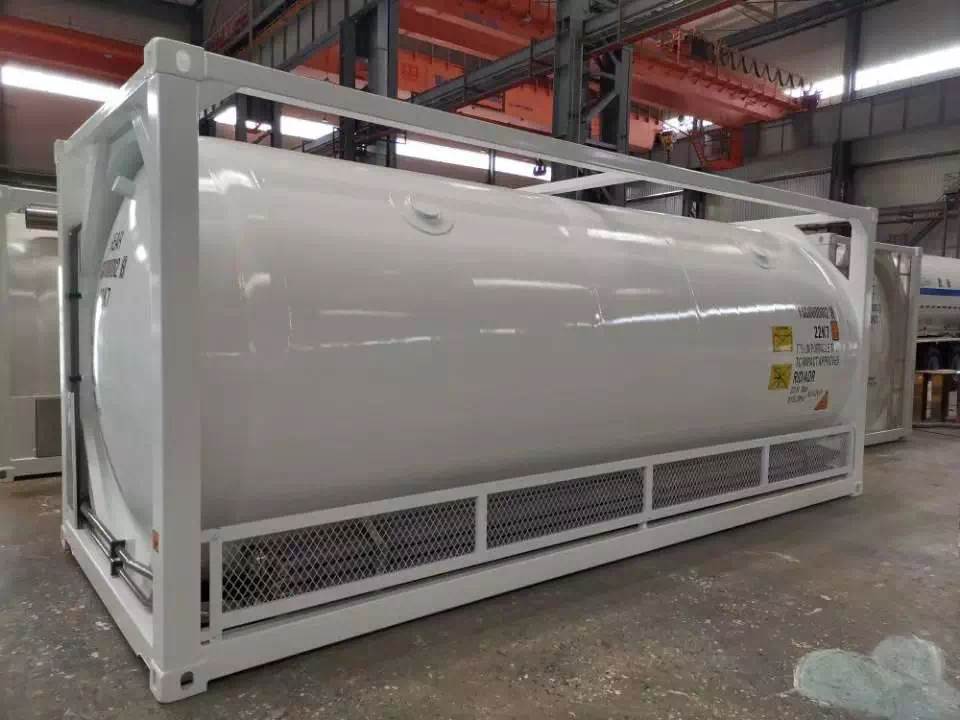

The container is used for carrying liquid goods such as wine,oil.liquid food and Single-layer liquid cargo such as chemicals,it is mainly composed of liquid tank and frame.The liquid tank adopts double layer structure, the inner wall is made of stainless steel or other rigid materials, the outer wall is made of thermal insulation material,the frame is made of high-strength steel, and the liquid tank is placed in the middle of the frame.Can be used for road railway and water transportation.

Product Parameters：

Inner Vessel Working Pressure(MPa)	Weight(Kg)	Outer Size(LWH)(mm)	Medium	Insulation Type	Design standard
1.6	7700	605824382591	LOX\LAr\LIN	High vacuum multi-layer insulation	GB/ASME
2.2	9200	605824382591	LOX\LAr\LIN\LCO2
2.2	9750	605824382591	LCO2
2.2	8000	605824382591	LPG
1.8	13000	1219224382591	LPG
